Turbosmart Gen-V Race Port Supercharger

Turbosmart Gen-V Race Port Supercharger

Over the years Turbosmart's Race Ports have become increasingly popular due to the small and lightweight BOV construction that has made them ideal for supercharged competition level racing engines.

The fifth generation of the Race Port Supercharger not only outperforms its predecessors but it also boasts an impressive new design to visually stand out from the previous Turbosmart race ports. Now 50% lighter and 25% smaller, the Gen-V is the highest flowing BOV of it's type flowing up to 330 CFM. Featuring a soft spring, the Race Port Supercharger is able to remain open when idle which allows the supercharger to continue to produce boost consistently.

Supplied With:

• Vacuum Fittings, Weld Flange, V-band Assembly and Pink Spring Rated -4 InHg (installed)
• Billet 6000 Series Aluminium Construction
• Quick Release V-band Collar for Ease of Installation and Removal
• 2.0" Inlet Flows over 330 CFM
• MILSPEC Hard Anodized Valve Guide and Stem
• Hi Temp Silicon Nomex Diaphragm
• Positive Sealing Valve Seat
• Twin 1/8"NPT Pressure Ports for Convenient Positioning
• Collar Secured Cap for Quick Spring Changes
• 4inHg to 26inHg Activation Range
• 5 User Configurable Corrosion Resistant Springs Available
• Valve Position Sensor Option
• Designed, Manufactured and Validated In-House at Turbosmart HQ

Colour Options:

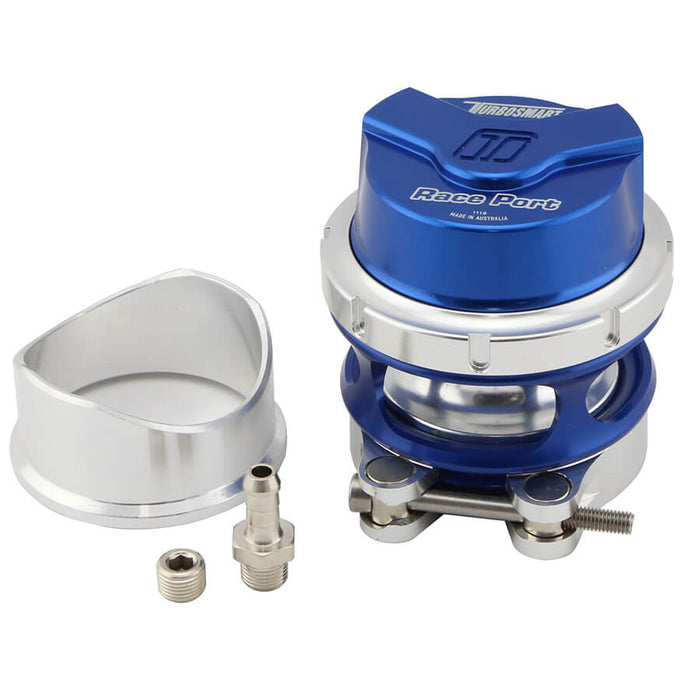

• TS-0204-1151 - Blue

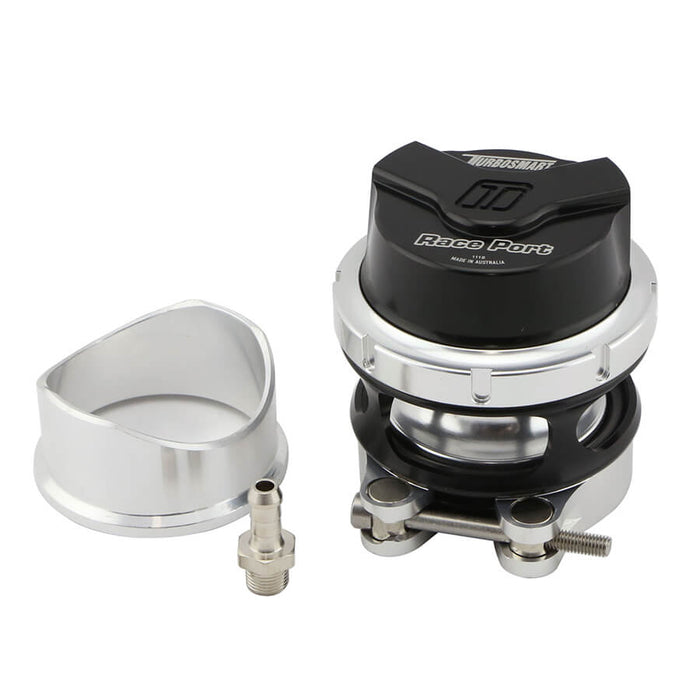

• TS-0204-1152 - Black

Applications:
