Audi S4 Audi 3.0TFSI Oil Cooler Adapter Plate- Forge Motorsport

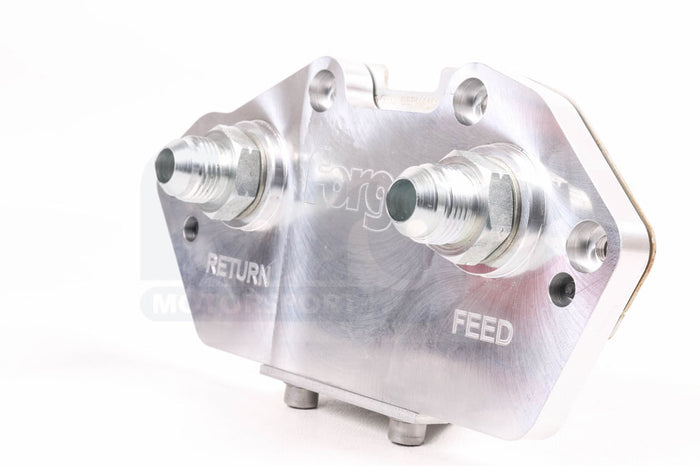

Audi 3.0TFSI Oil cooler adapter plate

A must on any tuned Audi 3.0TFSI engine. This oil cooler adapter plate enables the custom installation of an aftermarket oil cooler. This kit replaces the OEM water/oil heat exchanger allowing oil and water systems to run separately reducing the heat transfer between the two. With this billet adapter fitted the oil can then be routed to a large external oil cooler. CNC machined at our Gloucester machine shop from aircraft grade aluminium alloy and clear anodised.

Supplied with 2x M18 to Dash/JIC 8 adapters.

This part will fit all engines which has the OEM oil cooler Part No. 06E 117 021 G

Production year Model Engine code

2013-2015 A4/S4 CREC,CRED

2012-on A5/S5 CREC, CRED, CTDA

2015-on A6/A6 Allroad/S6 CREC

2015-on A7 CREC
