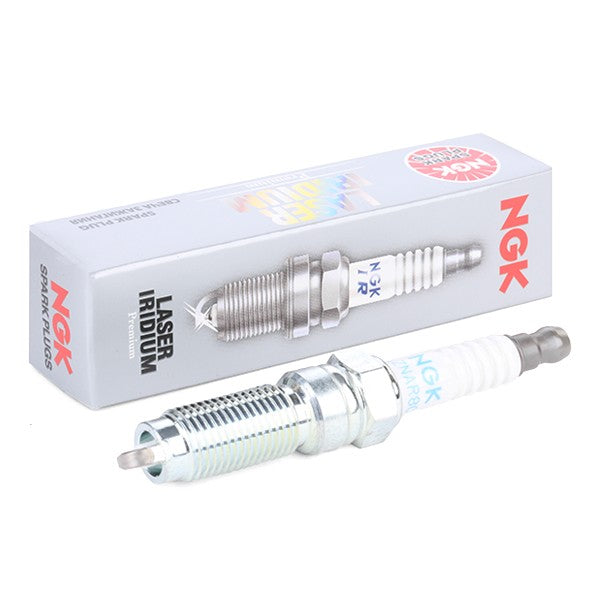

NGK 93593 Laser Iridium Spark Plugs - Ford 1.0 Ecoboost

£53.88 inc. VAT £44.90 excl. VAT

NGK 93593 Laser Iridium Spark Plugs - Ford 1.0 Ecoboost

Laser Iridium spark plugs provide superior ignitability and long service life. The smallest tip diameter available ensures a slow wear rate providing stable idle, superior anti-fouling, improved fuel efficiency and lower emissions.

NGK is the brand leader in the UK spark plug market and is the world's biggest supplier to many major car manufacturers. Each and every one of their products is designed to meet the most rigorous standards and are the professionals' choice because of their quality and technical excellence. Their plugs can be found in use by teams in F1, WRC and MotoGP. Put simply, NGK genuine spark plugs are the workhorse at the heart of smooth-running engines around the world.

NGK Laser Iridium Spark Plugs feature a laser-welded iridium centre electrode tip which ensures high durability and a greater spark while the platinum disc welded to the backside of the ground electrode provides longer life. The longer insulator nose prevents fouling, the corrugated ribs on the insulator prevents flashover and the triple gasket seal eliminates combustion gas leakage.

General Details:

Spanner Size 14 mm
External Thread [mm] 12,0
Thread Length [mm] 25,0
Spark Plug Fixed SAE connector
Spark Position [mm] 5,0
Spark Plug Iridium Middle Electrode
Spark Plug 1 - Earthed Electrode
Spark Plug interference Suppression 5 kOhm
Spark Plug with taper gasket seat


  • Laser welded Iridium centre electrode tip
  • Platinum disc welded to backside of ground electrode provides long life
  • Trivalent Metal Plating for superior anti-corrosion and anti-seizing
  • Faster starts and quicker acceleration
  • Better fuel economy and lower emissions
  • Best OEM Iridium spark plug available
  • Original Equipment Manufacturer approved design

Fitment / Compatibility:

Model Engine Size Number of Plugs Additional Information Engine Type Date
Ford B-Max 1.0 3 EcoBoost 100 & 120 C10FD0X, M1JA, SFJA, SFJB 08/12+
Ford C-Max (10-->) 1.0 3 EcoBoost 100 & 120 M1DA, M2DA 09/12+
Ford Ecosport (13-->) 1.0 3 EcoBoost 125 M1JC 12/13+
Ford Fiesta (08-->) 1.0 3 EcoBoost 100 & 120 SFJA, SFJB, M1JE 09/12+
FOCUS III (11-->) 1.0 3 EcoBoost 100 & 120 M1DA, M2DA 02/12+
Ford Grand C-Max 1.0 3 EcoBoost 100 & 120 M1DA, M2DA 09/12+
Tourneo Connect 1.0 3 EcoBoost 100 M2GA 10/13+
Transit Connect 1.0 3 EcoBoost 100 M2GA 10/13+
